About this item

• Integrated Driver & Dimmer 2-in-1: This innovative product combines a 60W 12V LED driver with a dimmer, offering a one-stop solution for your lighting projects. This design eliminates compatibility issues between drivers and switches, simplifying installation and ensuring a reliable system.
• Precise Dimming & Adjustable Voltage: Enjoy seamless dimming from 0.3% to 100%. The 16KHz PWM output with a gamma 2.2 curve provides a smooth, flicker-free dimming experience. The unique knob design allows you to fine-tune the output voltage from 12V to 13.5V to compensate for line loss and ensure consistent brightness.
• Versatile Design & 3-Way Switch Compatible: The product features a preset dimmer with an on/off switch for convenient operation. It is also compatible with 3-Way switches, offering more installation and usage flexibility.
• Safety Certifications: This LED power supply holds comprehensive UL, cUL, FCC, Class P, and RoHS certifications, meeting the highest safety standards. It features built-in protections against short circuits, overloads, and over-temperature, which automatically recover after removing a fault condition, ensuring your electrical safety.
• Efficient Performance with 5-Year Warranty: With a built-in active PFC function, this driver boasts a power factor of 0.99 at full load and an efficiency of up to 90.0%. Designed for dry and damp locations, it cools by free air convection, ensuring a long service life. We provide a 5-year warranty, promising you exceptional performance and reliability.

Product description

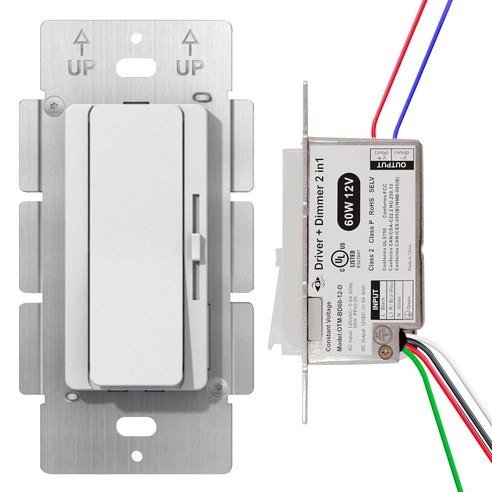

60W 12V Compact LED Driver & Dimmer Switch 2 in 1

The video showcases the product in use. The video guides you through product setup. The video compares multiple products. The video shows the product being unpacked.

60W 12V LED Driver & Dimmer Switch in One

Merchant Video

Output Power	60W
Input voltage	120Vac
Output Current	5A
Output Voltage	12Vdc
Power Factor	>0.95
Dimming Range	0.3-100%
Dimensions	105*54*51mm / 4.134"x2.126"x1.996" (Inch)

Previous page

1.

   Single pole

   For standard dimming system with Single pole,controll LED Lights from 1 location

2.

   3 Ways

   For Lights controlled from two locations

3.

Next page

Safer Dimming of Every Space

LED Driver & Dimmer all in one

• Excellent power driver to ensure the safety andstablility of lighting projection,
• 0.3-100% Dimming,No Flicker, No Noise

Integrated LED Lighting Solutions

Integrated LED Driver & Dimmer: Simplicity and Efficiency Combined

Streamline your lighting projects with OTTIMA's innovative 2-in-1 solution. This integrated LED driver and dimmer eliminates compatibility issues, offering seamless installation and flicker-free dimming from 0.3% to 100%. Adjust the output voltage for consistent brightness across your LED strips.

Dimmer Light Switch Power Supply

	60W 12V LED Driver & DIM Add to Cart	60W 12V LED Driver & CCT Add to Cart	96W 24V LED Driver & CCT Add to Cart	96W 24V LED Driver & DIM Add to Cart	160W 24V(80*2) LED Driver Add to Cart	60W 24V LED Driver 5 in 1 Add to Cart	40W 24V LED Driver 5 in 1 Add to Cart
Dimmable	✔	✔	✔	✔	✔	✔	✔
3-Way Switches	✔	✔	✔	✔	✔	✘	✘
Power Factor	≥0.95	≥0.95	≥0.95	≥0.95	≥0.95	>0.9	>0.9
Flicker-Free	✔	✔	✔	✔	✔	✔	✔
Dimming Range	0.3-100%	0.3-100%	0.3-100%	0.3-100%	0.3-100%	0-100%	0-100%

• What is the Design features?

  A-Driver build in Dimmer,Eliminated compatibility issues between drivers and switches

  B-Preset dimmer with on/off switch

  C-3-Way switches

  D-Dimming and color temperature adjustment function.

  E-Fine-tune output voltage can be adjusted slightly

• Does it cause LED light to flicker at low dimming?

  No,it doesn't. It is Flicker-free,and dimming range is from 0.3% to 100%

• Does it truly combine the LED driver and dimmer switch functionality, or do l still need a separate driver?

  Designed withpreset dimmer and on/off switch. Supports 3-Way switch system.Recommended to be instild by professionals and ensure the connection iscorrect.

• What type of LED lights is this driver suitable for?

  It is specifically designed for 12V Constant Voltage (CV) LED products, such as LED flexible strip lighting, LED rigid bars, and 12V modules. It is not suitable for Constant Current (CC) lights or other special voltage fixtures.

• Does "LED Driver & Dimmer Switch 2 in 1" mean it has a built-in led driver and dimmer switch?

  "2-in-1" means the LED driver (power supply) and dimming control functions are integrated into one device. You don't need to purchase a separate LED power supply and dimmer switch.
